The creator confirmed the clip fix ("the video plays now"), then asked where the
scrolling text was — it was invisible, for a structural reason. AlertTickerFrame
existed only as a frame-pump callback blitted into the OUTPUT; PreviewPane.xaml had
no element for it, because the strip is master-width and global, not a Source, so it
cannot ride a per-element Image. Nothing was wrong in the renderer: there was no
consumer in the preview. Same class of defect as the missing IsAlertBox trigger, one
layer up (MyMistakes RULE 5/6).
- tickerPreviewSink on AlertOverlayLayer, published from RefreshAlertPreviews() so it
is always the UI thread; MainViewModel.AlertTicker writes it into one reused
WriteableBitmap bound to a new global AlertTickerElement, mirroring SocialBarElement.
- Source.AlertDisplayMethod + panel "Display" selector: TickerScroll / Flash / Solid.
Flash pulses 0.5s on / 0.5s off for the whole alert; Solid is centred and still.
- The marquee was also unreadable: a fixed 140px/s took ~17s per pass, so a 10s alert
showed the text once, entering from the right and never crossing. Paced in reads per
alert instead (TickerReadsPerAlert = 3 inside the alert's own length, speed derived
from it) — never px/s. Research (websearch: how do OBS/Streamlabs/StreamElements
alert boxes present announcement timing?) settled the unit: Streamlabs exposes "Alert
Duration: choose how long your alert stays on your stream" and "Text Delay", never a
scroll-speed slider (https://support.streamlabs.com/hc/en-us/articles/52499995174299-Setting-up-Your-Streamlabs-Alerts).
Run is phase-started half a frame in so the first frame isn't blank.
- Persistence: AlertDisplayMethod INTEGER NOT NULL DEFAULT 0 via the idempotent
table_info migration, appended LAST in the SELECT because the Source reader is
positional (GetInt32(32..34)) — a mid-list insert would silently shift a neighbour.
Tests: 15 new facts (suite 339/339). RealApp STA host: the pane draws the strip and
collapses at alert end; the layer publishes a real 1920x48 frame for all three methods
and nothing when the ticker is off; three passes counted in 10s by the pill's leading
edge resetting (a seamless marquee never blanks, so an empty frame cannot count a pass);
Solid byte-identical at every moment; Flash on for half of each second; the panel shows
and writes back the choice; the DB round-trips all three alert fields together.
Incidental finding: a bound ItemsSource ComboBox in LeftPanel.xaml broke
LayerReorderPersistenceTests.RealMouseDrag (that test injects PHYSICAL mouse input, so a
load-time re-measure moves the rows out from under the cursor). Rewritten as inline
ComboBoxItems, the shape the chat Font selector already uses in that panel. Recorded as
MyMistakes RULE (8).
ytLlive
A creator-proof live-streaming and recording app for YouTube — native Windows (C# / WPF / .NET 8).

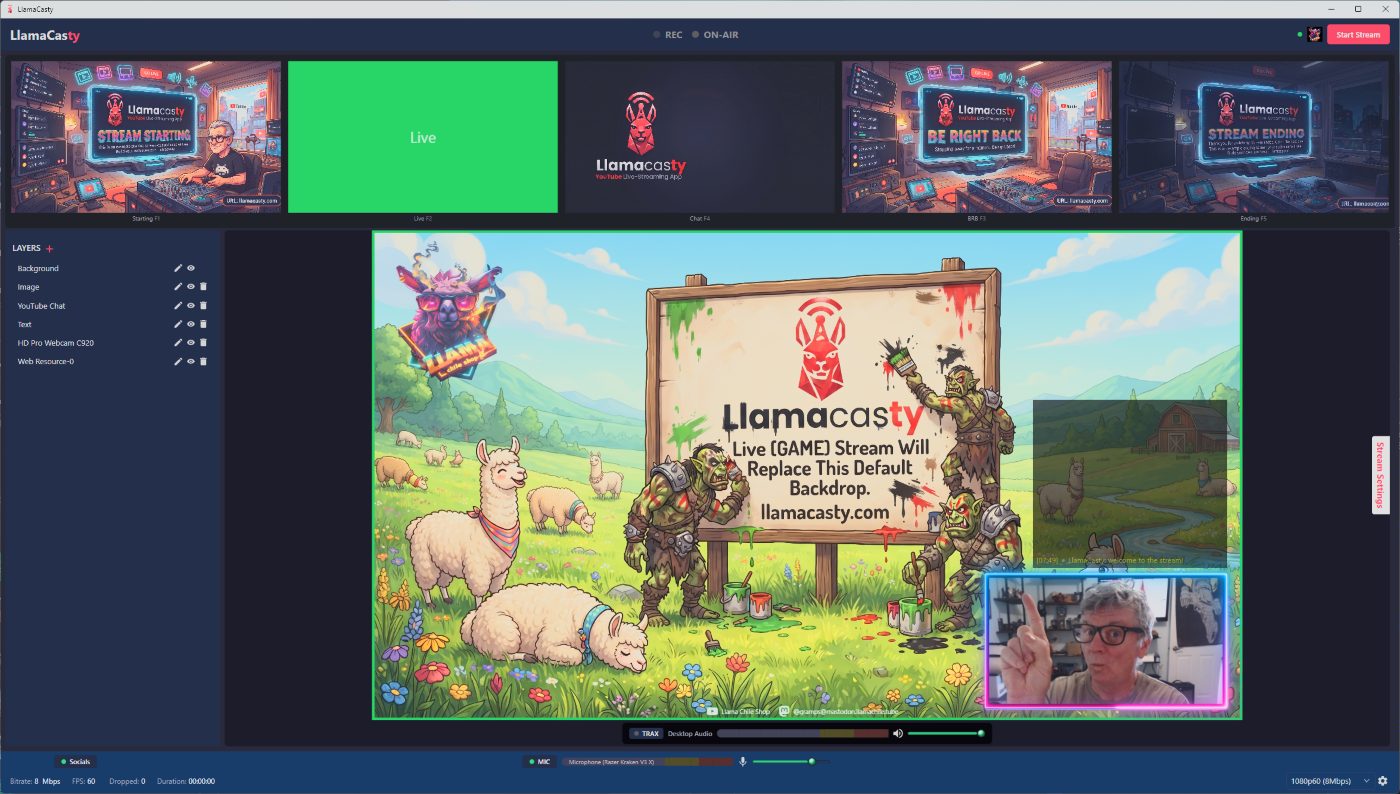

Screenshot
Design Principle
This software is so intuitive that even the most right-brained person can easily intuit and use it.
Every feature is measured against this. One-click go-live, sane YouTube defaults, visual scene building, and no dead ends — every action has a visible outcome.
Why ytLlive
OBS treats YouTube as an afterthought; SLOBS is Twitch-first with YouTube bolted on. ytLlive is designed and dedicated to YouTube livestreaming and recording, and to YouTube's specific quirks.
Account Assumption
ytLlive assumes you already have a YouTube creator account — connecting uses "Sign in with Google" to link that existing account. ytLlive does not create accounts. If you don't have a YouTube channel yet, set one up on YouTube first, then connect it here.
Audio Assumption
ytLlive uses your default microphone and desktop/game output — it never hunts for a device or contends for one. It assumes your audio is already configured and working (default input and output set, not hijacked by another app). Audio issues are a Windows/device matter outside ytLlive's scope: we don't debug, detect, or try to fix them. If it doesn't sound right, fix the system's audio settings first — it's on the OS, not on us.
Run
dotnet build # Windows only — WPF
dotnet run
Version Roadmap
v1 is the finished product (creator ruling, 2026-09-01 — there are no v1.x releases).
Everything still queueing lands in v1; anything not on the feature list is on the closed
"Out of product — permanently" list in TASKS.md — read that page before asking for a feature.
What v1 ships: the five-scene director's control surface, webcam + screen capture, media + web + text sources, chat on-stream, the social bar, mic/desktop audio with auto-duck and TRAX, local recording, variable quality tiers with auto step-down, one-click go-live + scheduling, stream resilience (auto-reconnect inside YouTube's grace, one-click back on air), built-in monetization awareness (reward capture, session reports, YPP journey tracker), Alerts — all free and ungated; the one-time license only removes the branding flash.
Structure
| Path | Role |
|---|---|
Models/ |
Scene, Source, WebcamSceneConfig, SceneElement, SceneCatalog, QualityOption, StreamConfig/Health, chat, Socials, BroadcastMetadata, Music, MicStatus |
ViewModels/ |
MainViewModel (partial classes per area) + dialogs: GoLive, CameraPicker, MicPicker, HotkeyConfig, Socials, LiveBroadcastForm |
Services/ |
YouTube (OAuth, streams/broadcasts, chat polling), LayoutStore (SQLite), capture (camera/screen-capture/media-file via FFmpeg), SceneCompositor + FramePump, FFmpeg encoder + RTMP, audio pipeline (WASAPI loopback + mic, mixer, filters, ducker, limiter, TRAX), SocialValidator, notifications, hotkeys, SceneGraph, ChatOverlayLayer |
Helpers/ |
ViewModelBase, RelayCommand, ImageCache, AppLog, TokenStore (DPAPI), OAuthCredentials, converters |
Themes/ |
Controls.xaml — the dark-theme control styles, merged once in App.xaml |
MainWindow.xaml |
Dark-theme control surface: thumbnails + central preview, two-state left panel (layers/properties ↔ live chat), top bar, footer |
Distribution.md |
GA-time plan: signing, installer, EULA, hardening — executed as TASK 36 |
Docs (memory map)
schema.md defines the conventions; ai.md is the AI/session guide;
TASKS.md is the task queue. Each code directory carries an index.md.
