TASK 43's alert box grows a real video celebration. Per-alert IAlertClipDecoder
(ffmpeg bgra + f32le pipes, real-time paced, disposed at drain) plays the shipped
Assets/alert-default.mp4 (stamped into the Asset table at startup) unless the
creator picks their own file — path reference only, never stored in the DB; the
six AlertRenderer animations stay the fallback. ~0.3s fade rides the alpha
envelope on straight-source copies (EOF freeze-frames then fades out); audio
forwards to a new AudioMixer alert ring (8s, 48k stereo) drained at unity — no
duck, creator ruling — scaled by volume × fade. An auto-composed marquee ticker
('Funder — Super Chat · $10.00', 140px/s) scrolls top-of-frame via a
FramePump._alertTicker seam through Render/CompositeLayers, mixed into the cache
signature (dynamic overlay, never baked). New Stream Alerts section in LeftPanel.
Derivative-work references (how OBS/Streamlabs alert boxes do per-alert video):
- https://support.streamlabs.com/hc/en-us/articles/217741147-Setting-Up-Your-Streamlabs-Alerts (custom image/video per alert type + variations)
- https://obsproject.com/kb/stream-tutorial-2-alerts (alert overlay as an on-screen zone)
- https://streamlabs.com/content-hub/widgets/alert-box (per-event alert playback)
Good Dog: AlertLayerVideoTests drives a fake IAlertClipDecoder through the whole
lifecycle in one pass (custom path wins, decoder spawns/disposes, fade envelope
0→127→255, audio volume×fade, ticker scrolls, EOF fade-drain to idle). It caught
the clip branch of Advance not clearing _current before AdvanceToNext — the layer
stayed IsPlaying after drain (MyMistakes post-mortem).
Full vstest 319/319; clean build 0 warnings; scope check green.
ytLlive
A creator-proof live-streaming and recording app for YouTube — native Windows (C# / WPF / .NET 8).

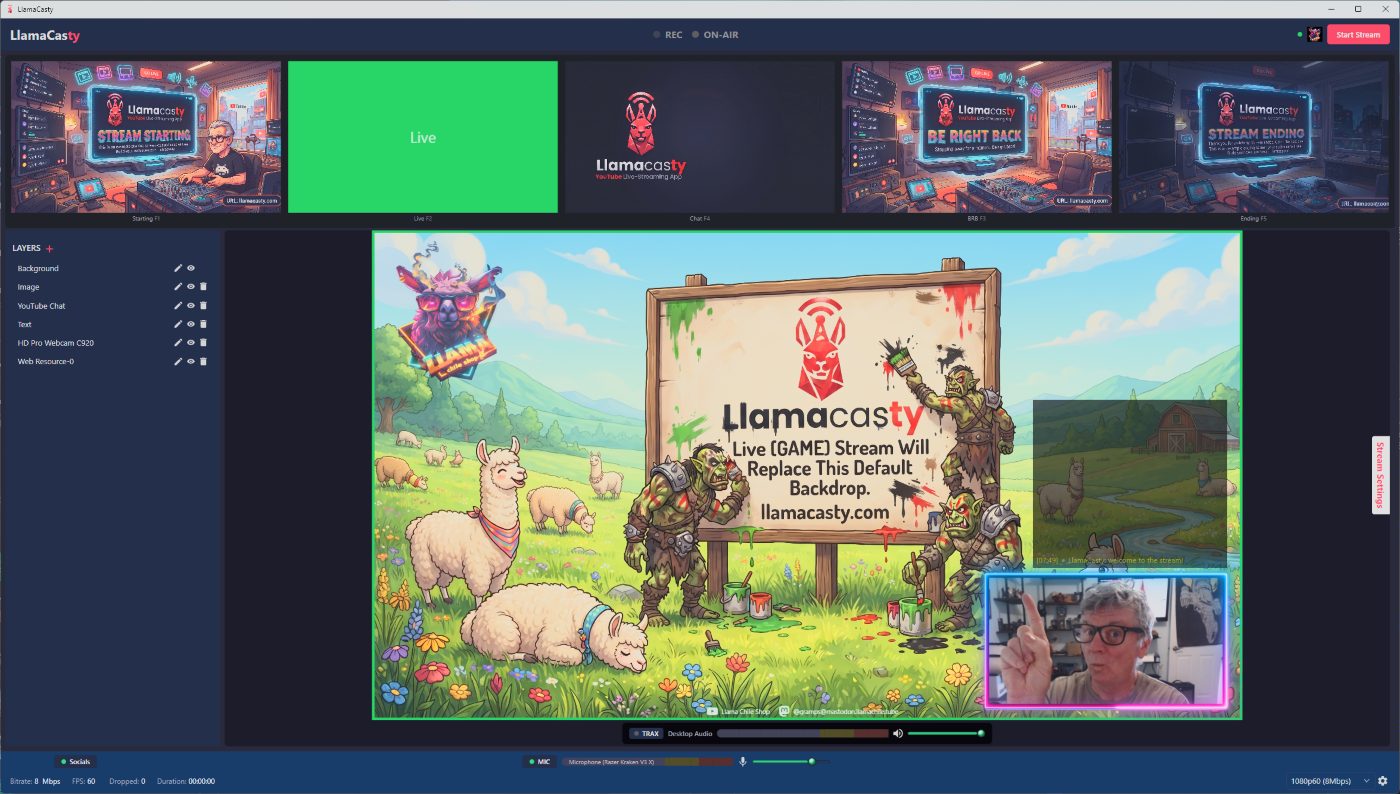

Screenshot
Design Principle
This software is so intuitive that even the most right-brained person can easily intuit and use it.
Every feature is measured against this. One-click go-live, sane YouTube defaults, visual scene building, and no dead ends — every action has a visible outcome.
Why ytLlive
OBS treats YouTube as an afterthought; SLOBS is Twitch-first with YouTube bolted on. ytLlive is designed and dedicated to YouTube livestreaming and recording, and to YouTube's specific quirks.
Account Assumption
ytLlive assumes you already have a YouTube creator account — connecting uses "Sign in with Google" to link that existing account. ytLlive does not create accounts. If you don't have a YouTube channel yet, set one up on YouTube first, then connect it here.
Audio Assumption
ytLlive uses your default microphone and desktop/game output — it never hunts for a device or contends for one. It assumes your audio is already configured and working (default input and output set, not hijacked by another app). Audio issues are a Windows/device matter outside ytLlive's scope: we don't debug, detect, or try to fix them. If it doesn't sound right, fix the system's audio settings first — it's on the OS, not on us.
Run
dotnet build # Windows only — WPF
dotnet run
Version Roadmap
v1 is the finished product (creator ruling, 2026-09-01 — there are no v1.x releases).
Everything still queueing lands in v1; anything not on the feature list is on the closed
"Out of product — permanently" list in TASKS.md — read that page before asking for a feature.
What v1 ships: the five-scene director's control surface, webcam + screen capture, media + web + text sources, chat on-stream, the social bar, mic/desktop audio with auto-duck and TRAX, local recording, variable quality tiers with auto step-down, one-click go-live + scheduling, stream resilience (auto-reconnect inside YouTube's grace, one-click back on air), built-in monetization awareness (reward capture, session reports, YPP journey tracker), Alerts — all free and ungated; the one-time license only removes the branding flash.
Structure
| Path | Role |
|---|---|
Models/ |
Scene, Source, WebcamSceneConfig, SceneElement, SceneCatalog, QualityOption, StreamConfig/Health, chat, Socials, BroadcastMetadata, Music, MicStatus |
ViewModels/ |
MainViewModel (partial classes per area) + dialogs: GoLive, CameraPicker, MicPicker, HotkeyConfig, Socials, LiveBroadcastForm |
Services/ |
YouTube (OAuth, streams/broadcasts, chat polling), LayoutStore (SQLite), capture (camera/screen-capture/media-file via FFmpeg), SceneCompositor + FramePump, FFmpeg encoder + RTMP, audio pipeline (WASAPI loopback + mic, mixer, filters, ducker, limiter, TRAX), SocialValidator, notifications, hotkeys, SceneGraph, ChatOverlayLayer |
Helpers/ |
ViewModelBase, RelayCommand, ImageCache, AppLog, TokenStore (DPAPI), OAuthCredentials, converters |
Themes/ |
Controls.xaml — the dark-theme control styles, merged once in App.xaml |
MainWindow.xaml |
Dark-theme control surface: thumbnails + central preview, two-state left panel (layers/properties ↔ live chat), top bar, footer |
Distribution.md |
GA-time plan: signing, installer, EULA, hardening — executed as TASK 36 |
Docs (memory map)
schema.md defines the conventions; ai.md is the AI/session guide;
TASKS.md is the task queue. Each code directory carries an index.md.
