gramps
c5e3466df0
PreviewPane.xaml(.cs) takes the center preview (Row 1 Col 1): the 1920x1080
canvas (OverlayCanvas/SelectionOverlay/BrandFlashLayer/SocialBarElement),
the text pull-out drawer, and the live-controls row (TRAX / game / mic meters,
volume sliders, speaker toggles, socials button) inside the preserved
glow/background Border.
Code-behind moved into the control (drive by DataContext==MainViewModel):
preview drag/select/resize/hit-test (Preview_Mouse{Down,Move,Up},
EndPreviewDrag, HitHandle, HitElement), webcam context-menu handlers
(WebcamMenu_ChangeWebcam/SetBorderAnimation/StopBorderAnimation/
FindBorderShape/CreateBorderAnimation/AddDoubleAnimation/SetBorderColor/
HideInScene/Remove), social-bar glow (SocialBar_MouseLeftButtonDown,
SocialsButton_Mouse{Enter,Leave}, SocialGlowTick), audio controls
(VolumeSlider_*, GameVolumeSlider_*, MicSpeaker_*, GameSpeaker_*,
SetSliderValueFromClick, FindParent), and TraxButton_*.
Window keeps the left source/property/chat panel + thumbnail strip + overlay
host, and routes the selection overlay and preview hit-testing through the
control's public surface (_previewPane.UpdateSelectionOverlay(bool),
IsClickInsidePreview/Drawer, PreviewPane.IsDraggableElement). BackgroundMenu_*
stayed in the window because the left-panel source context menu uses them
(the preview's own desktop/refresh menu binds RefreshCaptureCommand instead).
Preserved the outer preview Border (background/glow/margin) that was initially
dropped in the cut — caught and restored before commit. Pruned now-unused usings
(System.Net.Http, Media.Effects, Media.Animation, Media.Imaging, Shapes,
Threading) from MainWindow.xaml.cs.
Zero behavior change; build 0 warnings; 246 pass, only the 2 known failures.
Docs: ViewModels/index.md Phase 2 tracker updated in the same commit.
ytLlive
A creator-proof live-streaming and recording app for YouTube — native Windows (C# / WPF / .NET 8).

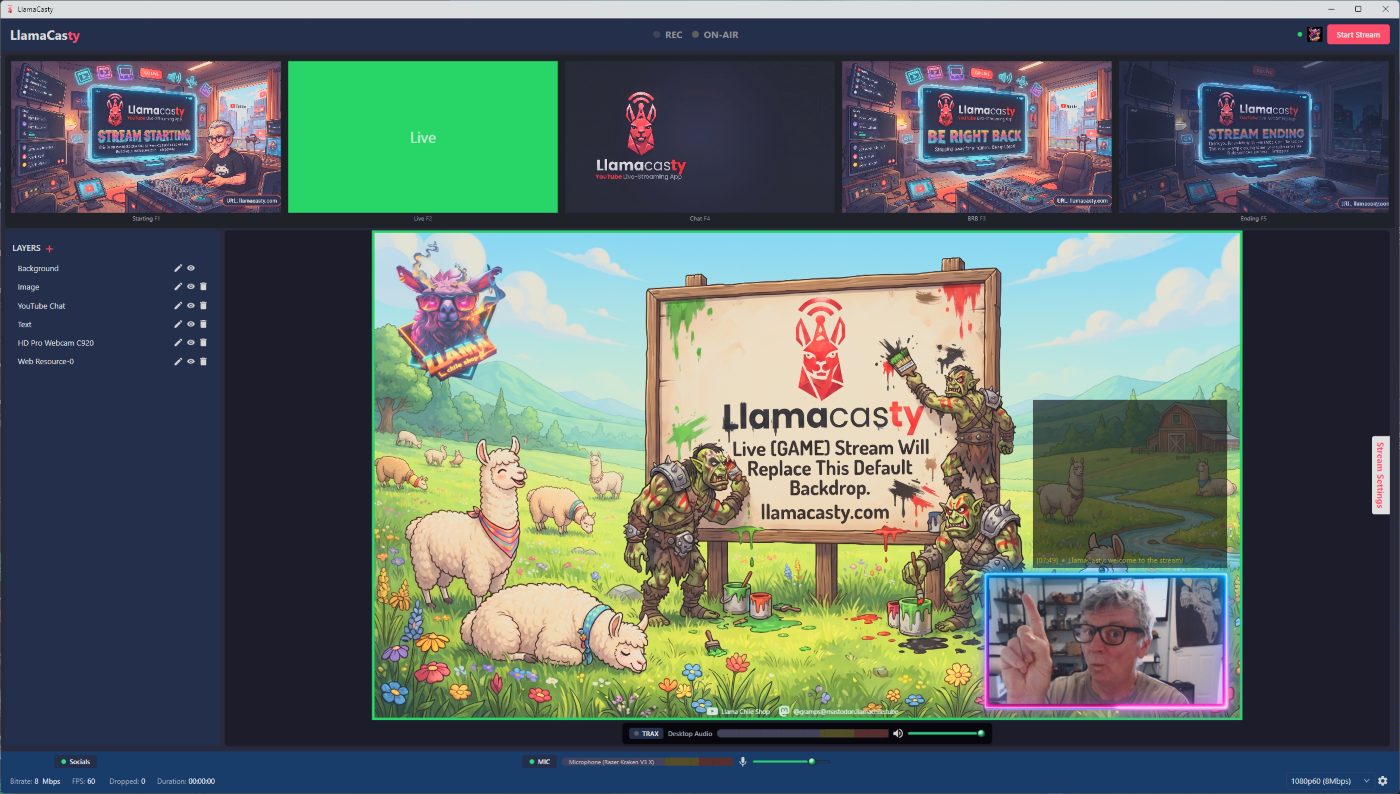

Screenshot
Design Principle
This software is so intuitive that even the most right-brained person can easily intuit and use it.
Every feature is measured against this. One-click go-live, sane YouTube defaults, visual scene building, and no dead ends — every action has a visible outcome.
Why ytLlive
OBS treats YouTube as an afterthought; SLOBS is Twitch-first with YouTube bolted on. ytLlive is designed and dedicated to YouTube livestreaming and recording, and to YouTube's specific quirks.
Account Assumption
ytLlive assumes you already have a YouTube creator account — connecting uses "Sign in with Google" to link that existing account. ytLlive does not create accounts. If you don't have a YouTube channel yet, set one up on YouTube first, then connect it here.
Run
dotnet build # Windows only — WPF
dotnet run
Version Roadmap
| Version | Scope |
|---|---|
| v0.1 | Scene/source management, YouTube RTMP ingest, YouTube OAuth2, live chat, stream health |
| v0.2 | Recording to local file |
| v0.3 | Stream scheduling |
| v0.4 | Multi-destination restreaming |
| 1.0 | General availability |
Structure
| Path | Role |
|---|---|
Models/ |
Scene, Source, QualityOption, StreamConfig, StreamHealth, YouTube channel/chat, Socials (social bar) |
ViewModels/ |
MainViewModel — scenes, stream controls, chat; GoLiveViewModel, ReuseImageViewModel, SocialsDialogViewModel |
Services/ |
YouTubeAuthService (OAuth2), YouTubeStreamService (broadcast/health), YouTubeChatService (chat polling), LayoutStore (SQLite), SocialValidator (social link/fediverse validation + nodeinfo icon resolution) |
Helpers/ |
ViewModelBase, RelayCommand, ImageCache, AppLog, FocusPreservingListBox, OAuthCredentials |
Themes/ |
Controls.xaml — the dark-theme control styles, merged once in App.xaml |
MainWindow.xaml |
Dark-theme main UI: scene/source panel, preview, chat, status bar |
SocialsDialog.xaml |
Social Media Site Promotion dialog — 6-slot social bar editor with sign-in gate and validation |
Docs (memory map)
schema.md defines the conventions; ai.md is the AI/session guide;
TASKS.md is the task queue. Each code directory carries an index.md.
