- Meter is a READ-ONLY realtime level display: fill = Math.Min(1, AudioLevel * MicVolume) (AudioLevel = live input from the future mixer, 0 with no input; MicVolume is gain on ambient noise). While the slider is dragged the bar previews the slider position (PreviewMouseLeftButtonDown/Up + LostMouseCapture -> SetVolumeAdjusting); on release it returns to the live level (bounces to 0 with no input). Clicking the meter does nothing. - MicVolume drives MicMuted (read-only, muted <=> volume 0): sliding to 0 flips the speaker to the red slashed mute icon, sliding up from 0 clears it; speaker button runs volume to 0 or restores the prior level (_volumeBeforeMute, default 0.8) and flashes the meter to the restored position for ~300ms (BeginVolumeFlash/EndVolumeFlash DispatcherTimer, cancelled if the slider is grabbed). - MIC label opens MicPickerDialog (WinRT audio-capture device enumeration, mirrors camera picker, no new packages); the chosen voice source name shows left-justified INSIDE the meter bar (fill at 75% opacity so text + ruler markings show through). - New files: Services/IMicrophoneEnumerator, MicrophoneDeviceInfo, WinRtMicrophoneEnumerator; ViewModels/MicPickerViewModel; MicPickerDialog. - Docs updated (ai.md, TASKS.md, Services/index.md, ViewModels/index.md); build 0 warnings, 65 tests passing
ytLlive
A creator-proof live-streaming and recording app for YouTube — native Windows (C# / WPF / .NET 8).

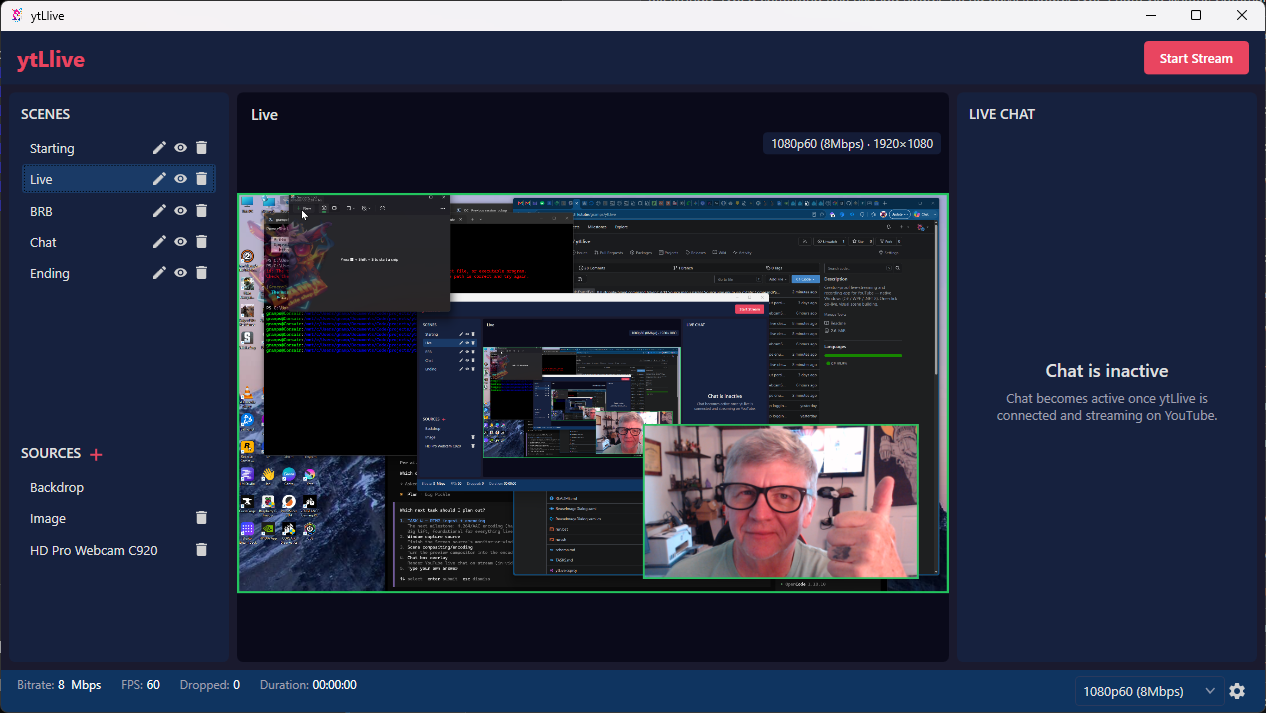

Screenshot
Design Principle
This software is so intuitive that even the most right-brained person can easily intuit and use it.
Every feature is measured against this. One-click go-live, sane YouTube defaults, visual scene building, and no dead ends — every action has a visible outcome.
Why ytLlive
OBS treats YouTube as an afterthought; SLOBS is Twitch-first with YouTube bolted on. ytLlive is designed and dedicated to YouTube livestreaming and recording, and to YouTube's specific quirks.
Account Assumption
ytLlive assumes you already have a YouTube creator account — connecting uses "Sign in with Google" to link that existing account. ytLlive does not create accounts. If you don't have a YouTube channel yet, set one up on YouTube first, then connect it here.
Run
dotnet build # Windows only — WPF
dotnet run
Version Roadmap
| Version | Scope |
|---|---|
| v0.1 | Scene/source management, YouTube RTMP ingest, YouTube OAuth2, live chat, stream health |
| v0.2 | Recording to local file |
| v0.3 | Stream scheduling |
| v0.4 | Multi-destination restreaming |
| 1.0 | General availability |
Structure
| Path | Role |
|---|---|
Models/ |
Scene, Source, QualityOption, StreamConfig, StreamHealth, YouTube channel/chat |
ViewModels/ |
MainViewModel — scenes, stream controls, chat; GoLiveViewModel, ReuseImageViewModel |
Services/ |
YouTubeAuthService (OAuth2), YouTubeStreamService (broadcast/health), YouTubeChatService (chat polling), LayoutStore (SQLite) |
Helpers/ |
ViewModelBase, RelayCommand, ImageCache, AppLog, FocusPreservingListBox, OAuthCredentials |
Themes/ |
Controls.xaml — the dark-theme control styles, merged once in App.xaml |
MainWindow.xaml |
Dark-theme main UI: scene/source panel, preview, chat, status bar |
Docs (memory map)
schema.md defines the conventions; ai.md is the AI/session guide;
TASKS.md is the task queue. Each code directory carries an index.md.
